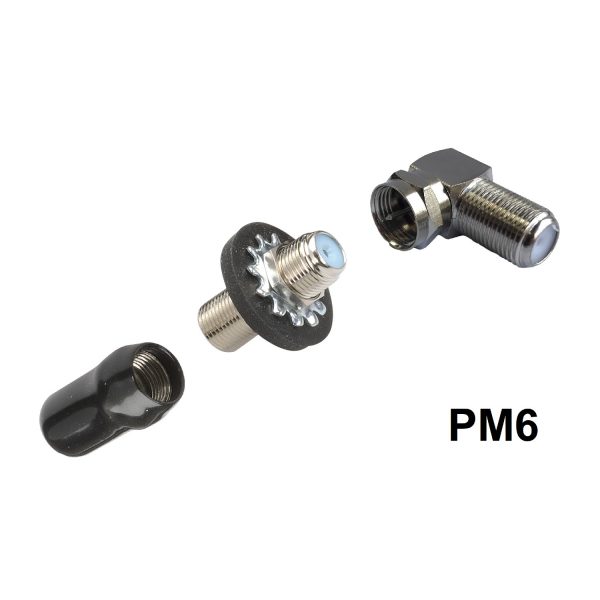

PM6 exploded

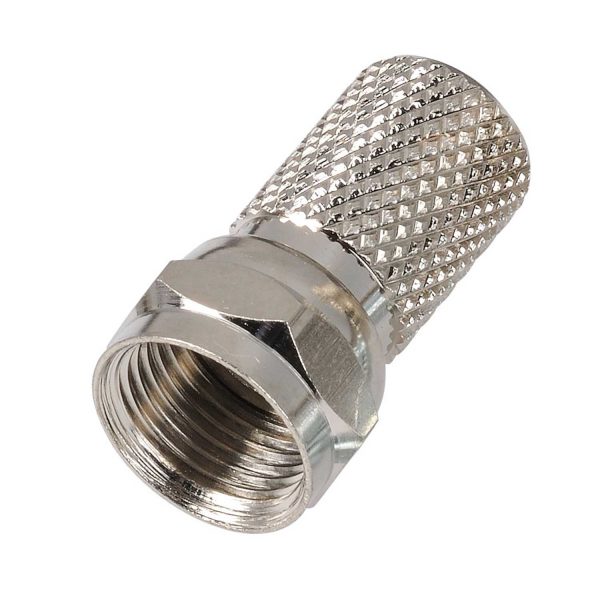

single twist on

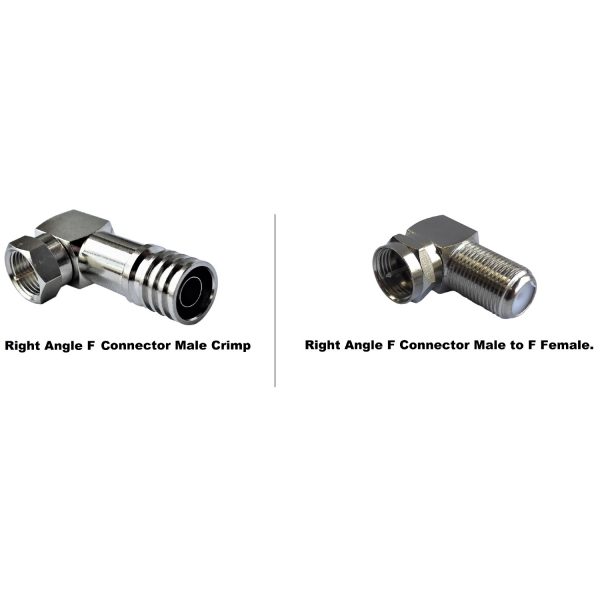

Right angle F RG6 Duo
RA

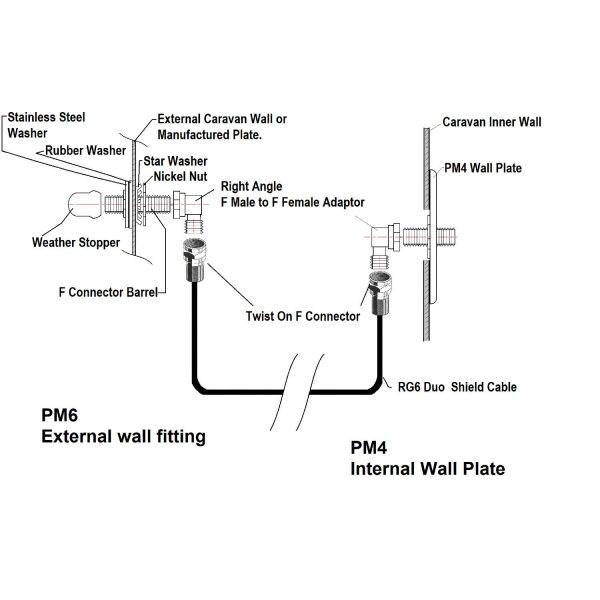

PM64 drawing

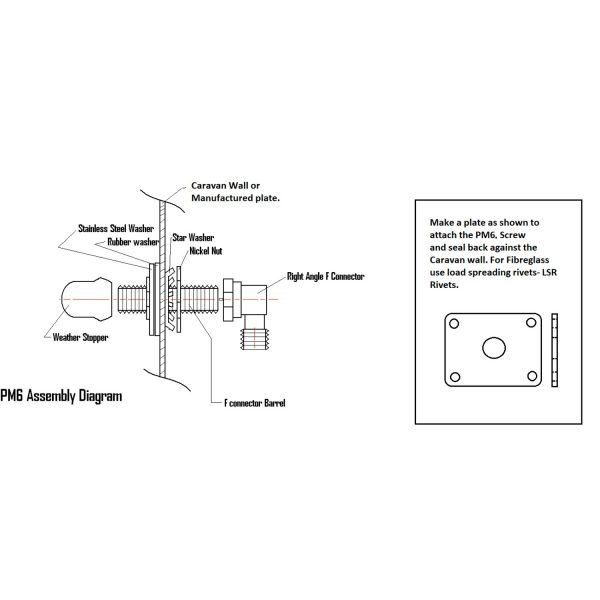

PM6 assembly drawing

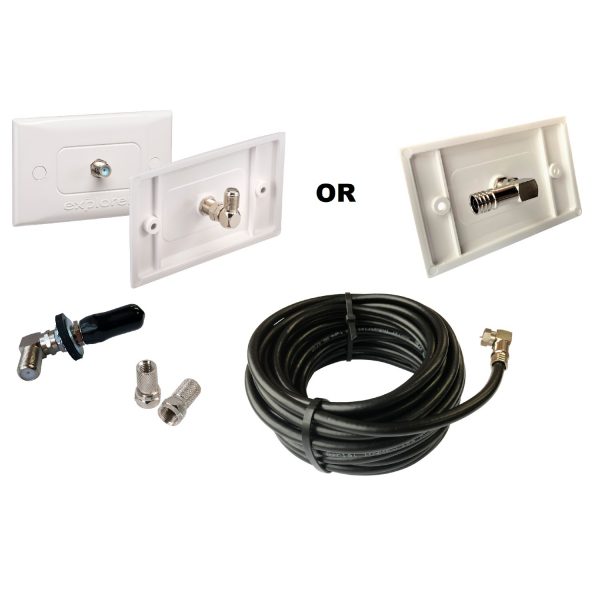

PM64 kit

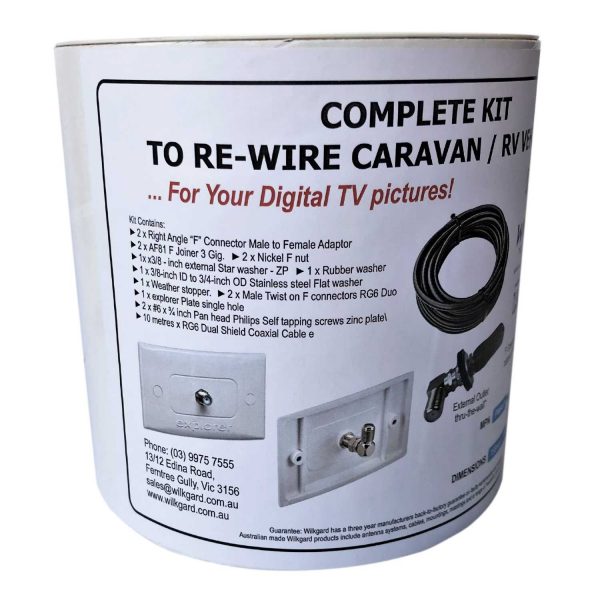

PM64 package
PM64 label
  • Rewire Kit for Television Reception
  • PM6 exploded
  • single twist on
Rewire Kit for Television Reception
  • Rewire Kit for Television Reception
  • PM6 exploded
  • single twist on

Rewire Kit for Television Reception for Caravans or any RV Vehicle.

$74.87

Passive TV outlet for external walls and outlet for an internal wall re-cable kit.

Part Number:  PM6410-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:
: TV Pixilation catalogue SKU: K100-1018
Category:

Description

Rewire Kit for Television Reception for caravans or any RV vehicles. Includes internal and external Passive TV Outlets and 10 metres of cable.

Rewire Kit for Television Reception RV digital TV Kit is designed to suit any caravan, mobile home, etc, for a TV antenna Point, FM radio or satellite Connection.

It is designed to be installed inside the wall at manufacturer or during a repair and the cable run to the included internal TV point at some other area of the Van or a splitter for multiple points.

If you have an existing cable to an external point and you need to replace the old rusty push in fitting with a Digital non corroding F connector then this is ideal.

To repair an old van:

Just cut a suitable square or rectangle (whatever best suits your van profile) of sheet aluminium that fits your Van profile and drill a 3/8 hole in the centre. Then you can screw/Rivet and glue that plate back to cover the external hole left by the removal of the old fitting.



This unit suits:

  • Any RF frequency between 45 MHz – 1 GHz.



Specifications

Specifications:

  • Wall thickness minimum of 25mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range: 45 MHz – 1 GHz. Will function at high frequencies (up to 3 GHz) however, performance can reduce in the higher frequency range above the rated value.

Parts Included

Parts Included:

  • F connector Long Joiner – 3 GHz.
  • Rubber washer
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • Nickel “F” nut.
  • 3/8-inch star washer.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • 2 x #6 x ¾ inch Panhead Philips Self tapping screws.
  • 2 Flush Caps.

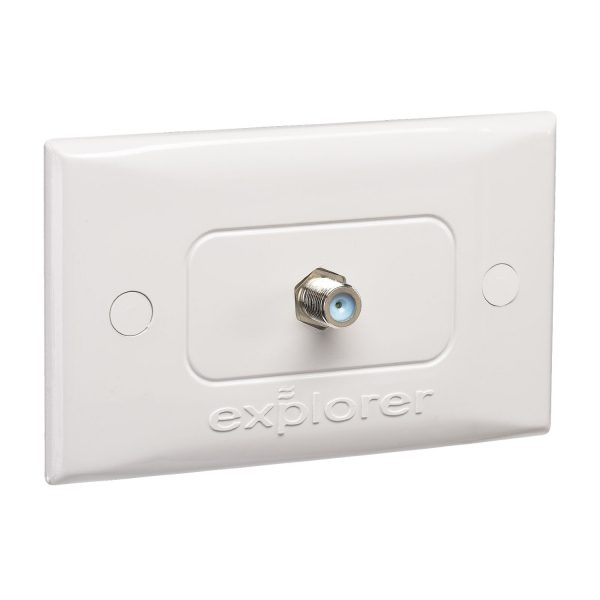

  • PM4 internal wall plate with F connector.

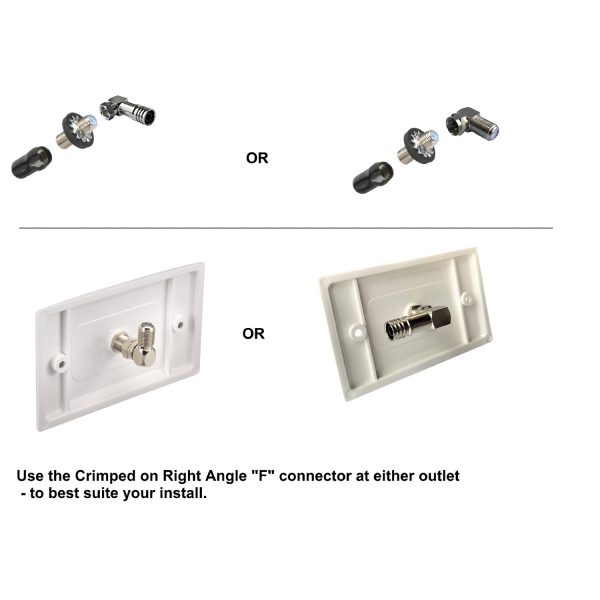

  • 1 x Male to Female Right-Angle “F” connector adaptor.
  • 1 x Twist on F connector or universal F connector for RG 6 Duo cable.

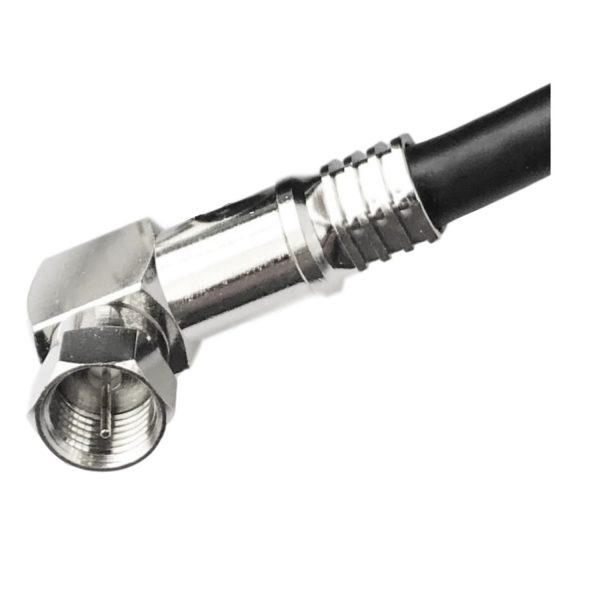

  • 10 meters cable fitted at one end with a right Angle F connector crimped on.
  • Full installation Instructions.

Tutorials

…..

Additional information

Weight 0.7 kg
Dimensions 16 × 16 × 16 cm
