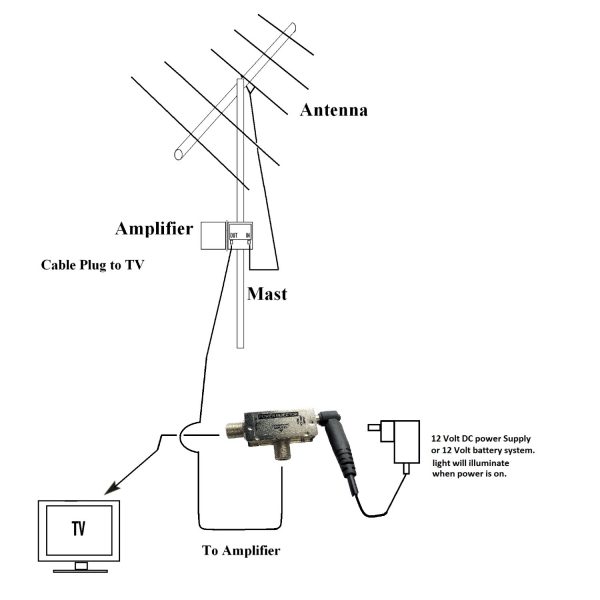

mast head amp line drawing
power injector
MHA183 label

Mast Head Amplifier Kit with built in LTE filter, Comes complete with power supply plus Injector.

$111.30

25 dB UHF/VHF adjustable gain Mast Head Amplifier Kit with built in LTE filter. Comes complete with power supply plus injector and.

Part Number:MHA183-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:

Description

Mast Head Amplifier Kit with built in LTE filter

Mast Head Amplifier Kit with built in LTE filter an excellent low noise Mast Head Amplifier for any Installer to use. Well shielded against interference and with a built in low noise LTE Filter to block out unwanted signal interference from the 4G or 5G signals.

Features:

  • the ability to select 1 or 2 inputs.
  • it covers FM and band 3/DAB range and the full UHF range.
  • It also features separate VHF/UHF adjustable gain capability so you can set up the amplifier for your needs.
  • Plus a handy power indicator and an excellent weather protection box that is easy to mount.

The Kit comes complete with a matching Power supply and power injector suitable for any home use. Refer our blog on Booster/Mast Head Amplifiers for more information.



Specifications

Specifications:

  • Built in LTE Filter to block out interference signals in the 4 and 5 G range.
Number of inputs 1 or 2 (Selectable)
Frequency Range MHz Fm:

88-108

B111/DAB:

160-260

UHF:

470-694

Gain dB 16 24
Adjustable gain Range dB 20 16
Noise Figure dB 5,0 +/- 1,0 3,5 +/- 1,0
Rejection between inputs dB >30
Power supply 12 Volts DC / 45 milli Amps
Operating Temperature Deg C -10.. + 65
Protection Index IP 53



Parts Included

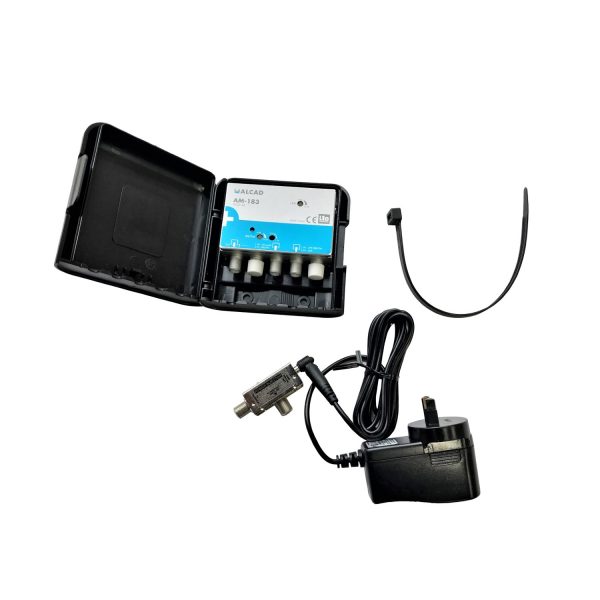

Parts Included:

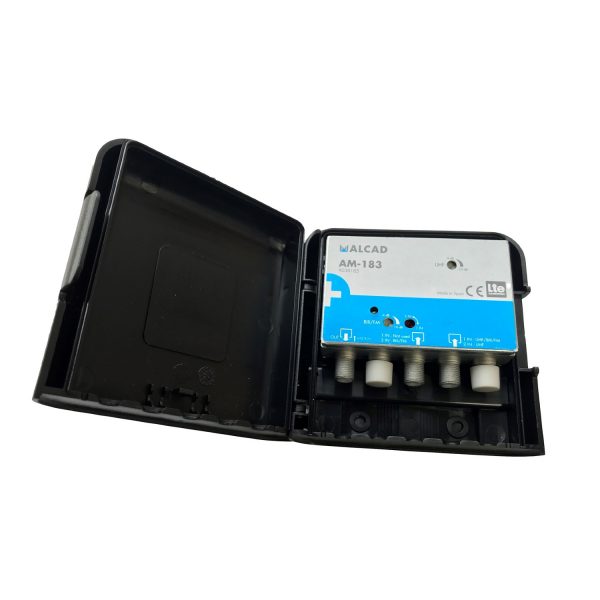

  • 1 x ALCAD AM-183 VHF/UHF Mast Head Amplifier.
  • 1 x 240VAC/12VDC 500 mA power supply with a 2.5 MM Centre positive DC Plug.

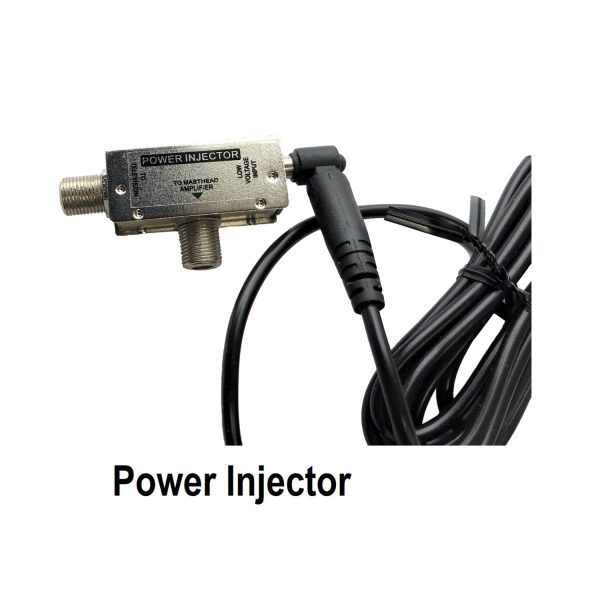

  • 1 x Power Injector 12 VDC with built in LED power indicator.

Additional information

Weight 0.6 kg
Dimensions 16 × 16 × 15 cm
