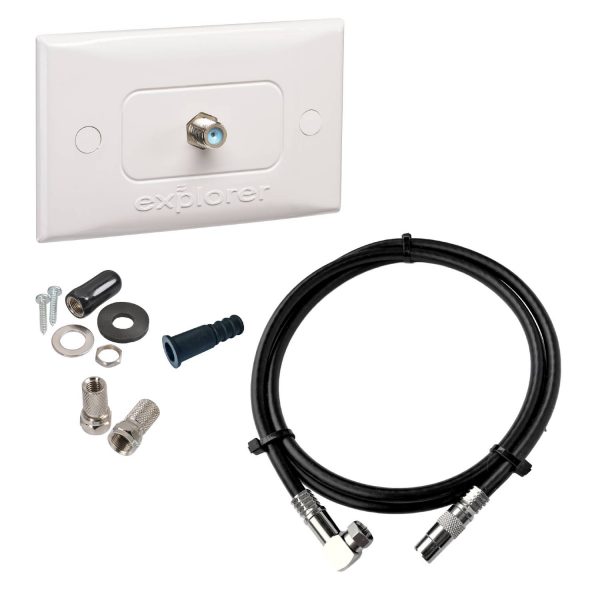

Caravan TV Digital upgrade kit

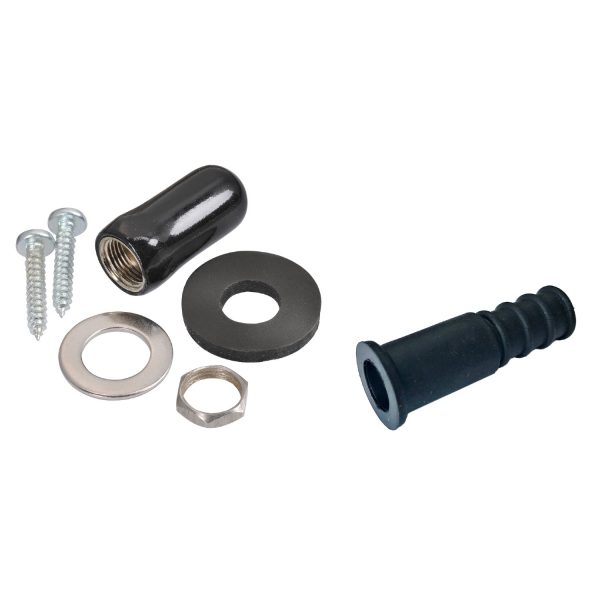

PPFLC parts
1.2 Meter F to PAL RG6 Dual Shielded Commercial grade fly lead

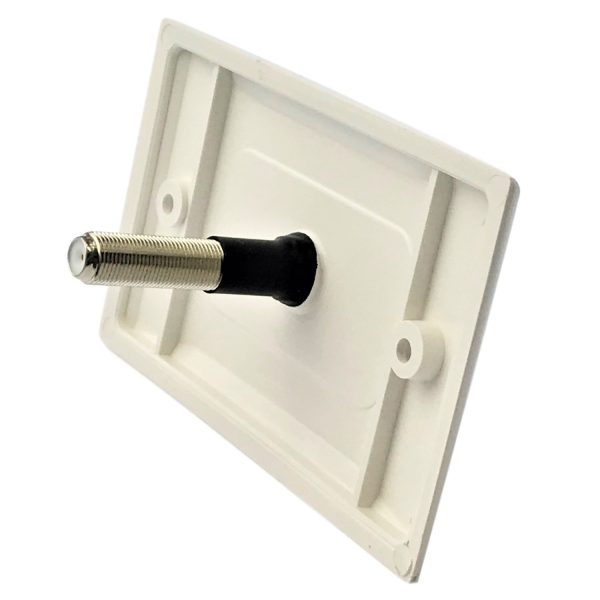

PC6A rear view
PPFLC label
PPFLC package

Caravan TV Digital Upgrade Kit, Improve your TV Signal and tidy up your van wiring with this neat TV antenna / satellite dish Kit.

$58.46

Digital Upgrade kit for Caravan Antenna system. (Passive Thru -the–wall Connection kit, Flylead and fittings)

Part Number: PPFLC-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:

Description

Caravan TV Digital upgrade kit COMPLETE – Improve your TV Signal Delivery.

Caravan TV Digital upgrade kit, RV digital connection Outlet wall Plate is designed to suit any caravan, mobile home, etc, for a TV antenna Point.

It is designed to go straight from the inside wall to the outside wall, eliminating the need and loss of extra cable and connections. This creates a much more reliable connection.

This is the standard size unit which suits: Wall thickness between 20 mm and 29 mm.

  • Extensions are available to extend the length if required –a 28 mm and a 40 mm extension are available – see our spare parts and accessories section.
  • Passive Units can be used with an existing antenna or satellite and will pass power – for use with a non-explorer amplifier as the Power injector is built into the wall Plate or satellite box.
  • Commercial grade & handmade 1.2 M Flylead with unique right angle “F” connector to lay neatly against your van wall and take up less space.
  • No special tools required to install.
  • Passive units can be used with any antenna or satellite dish.



Specifications

Specifications:

  • Rated for up to 3 Giga Hz (suitable for satellite frequencies)
  • Digital “F” connector connections with complete shielding from antenna to TV.
  • Commercial grade & handmade Flylead with unique right angle “F” connector to lay neatly against your van wall and take up less space.
  • Black UV stabilised Silicon rubber cable weather protection boot.

Parts Included

Parts Included:

  • PASSIVE PLATE PC6A-P Upgrades connection to an explorer Thru-the-Wall digital plate.
  • New 1.2-meter fly lead for plate to TV connection. All terminated for minimum signal loss
  • Comes with 2 sizes of twist on F connectors. One will suit your current antenna cable. Fit the boot supplied and fit your new F connector to allow you antenna cable to connect to the screw on F connector on your new Thru-the-Wall digital connection.
  • 1 x Cable boot to keep the weather out of your connection when the antenna cable is installed.

Tutorials

…..

Additional information

Weight 0.3 kg
Dimensions 11 × 11 × 16 cm
